Voigtlander 75mm f1.5 VM ASPH Vintage Line Nokton Black Lens

The NOKTON Vintage Line 28mm F1.5 Aspherical is a wide-angle lens that combines three elements: a

large aperture, compact dimensions, and outstanding optical performance. The lens is F1.5, very fast for a

28mm wide-angle lens, with compact 43mm filter diameter and 45.5mm length for portability.

The classically designed lens barrel is equipped with an 8-group, 10-element optical system featuring two

aspherical lens elements on both sides. This delivers outstanding optical performance even at an aperture of

f/1.5.

The minimum focusing distance is 0.5m by the use of a helicoid that can be moved out further from the 0.7m

distance (depending on the camera) linked to the rangefinder.

Two different styles will be offered: The Type I is made of aluminum and weighs 250g. The Type II is made of

brass and has a tactile quality due to its hefty weight of 330g. The Type I styling is reminiscent of modern

classic lenses of the 1970s in matte black paint or silver, while the Type II, reminds us of the famous lenses

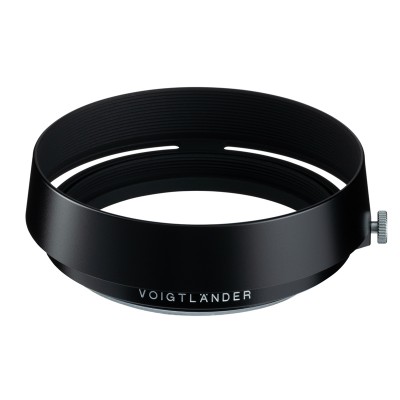

of the 1960s and is available in both black paint and silver finishes. The optional lens hood with slits, LH-6

fits both Type I and Type II styles.

In addition to this, the Type II includes a focusing knob that offers a new manual focusing experience. The

accessory knob can be exchanged on the focusing lever by unscrewing the screw in the finger recess and

reattaching with new knob. The focusing knob is metal and focuses the lens at approximately 1 meter from

the lens mount when turned to the 6 o'clock position, allowing the user to zone focus by the angle of the

knob.

The optical design of this lens is optimized for use with rangefinder-coupled digital and film cameras. It also

may be used on mirrorless cameras through the use of a mount adapter, making it suitable for use on a

variety of platforms beyond rangefinder cameras.

The NOKTON Vintage Line 35mm F1.5 Aspherical is a regular use lens for rangefinder cameras with a large aperture. Still, the filter diameter is kept to φ39mm and the overall length of the product is short at 36mm, giving it a tight, compact portability.

The lens barrel, with a modern classic design, is equipped with a 6-group, 9-element optical system featuring two double-sided aspheric lenses, which provide excellent optical performance at all apertures.

The minimum focusing distance is 0.5m, shorter than the 0.7m linked to the rangefinder (depending on the camera to which it is attached).

Two styles are available: First, there is Type I, made of aluminum and weighing 188g having both light weight and maximum portability. Also offered is Type II, made of brass and weighing 284g for a sturdy and substantial feeling, with a finish choice of either black or silver.

The optional hoods LH-4N with slits and LH-12 classic style are both compatible.

The COLOR SKOPAR 50mm F2.2 is a manual focus standard lens optimized for full size VM mount sensors. Cosina lens designers succeeded in reducing the exterior lens barrel length to only 30mm, despite this being a 50mm F2.2 standard lens.

High performance optics using 7 elements in 6 groups including 3 elements of anomalous partial dispersion glass achieve excellent optical performance even wide open at F2.2. It is possible to focus beyond the minimum rangefinder distance of 0.7 m and up to 0.5 m with the interlocking of the rangefinder. It is effective when shooting with a camera equipped with a live view function.

It comes with a compact, straight-type hood that is shaped so that it does not obstruct the rangefinder camera rangefinder window.

Aspheric ultra-wide-angle lens with integrated lens hood

Focal Length: 12 mm
Aperture Ratio: 1:5,6
Minimum Aperture: F 22
Klick Stop: 1/2
Lens Construction: 12 elements in 10 groups
Angle of View: 121?
Aperture Blades: 10
Minimum Focus: 0,5 m
Maximum Diameter: 64,8 mm
Length: 59,2 mm
Mount: M-bayonet (VM)
Weight: 283 g
Filter Size: n/a
Color11black
Others11Lens hood (non-detachable), Pressure fit cap,
Optional11---

The Voigtlander COLOR-SKOPAR 28mm F2.8 Aspherical L39 is a high-performance wide-angle lens focused on light handling for rangefinder cameras. The latest optical design and aspherical lens elements maintain the same optical performance as our Voigtländer ULTRON Vintage Line 28mm F2 Aspherical VM, while keeping the maximum aperture at F2.8 to achieve extreme portability.

Type I has a nostalgic appearance thanks to the use of a rotating helicoid system, and a brass lens exterior. It is available in black paint and silver finishes.

All models have extremely compact exteriors, and the lenses combine the mobility of a rangefinder camera with the beautiful design of a snap-shooter. The optical system consists of 8 elements in 5 groups, including one double-sided aspheric lens.

Aspheric high speed wide-angle lens and integrated, non-detachable, lens hood.

Focal Length: 21 mm
Aperture Ratio: 1:1,8
Minimum Aperture: F 22
Lens Construction: 13 elements in 11 groups
Angle of View: 91?
Aperture Blades: 10
Minimum Focus: 0,5 m
Maximum Diameter: 69 mm
Length: 78,4 mm
Mount: M-Bajonett (VM)
Weight: 412 g
Filter Size: 58 mm
Color: black
Others: integrated lenshood (not detachable),
Optional: ---

Following the success of the E-Mount 40mm f1.2, here is the VM mount version. Optically the same as the E-Mount but slightly adjusted so it can be worked by both film and digital platforms.

Main Features:

Enhanced high performance aspherical lens surfaces
Extremely solid and durable all-metal barrel
Manual focus
10 aperture blades
VM Bayonet Mount
Focus coupling system
Minimum focus distance: 50cm

Focal Length:\01140mm
Aperture Range:\011f1.2 - f22
Elements / Groups:\0113 / 3
Angle of View:\01155?
Focusing Range:\0110.5m
Lens Type:\011Standard
Lens Coverage:\011Full Frame / 35mm
Lens Focus Mechanism:\011Manual
Adaptor Ring / Lens Filter Thread: 52mm
Compatible Lens Hood:\011LH-8 (Sold Separately)
Lens Colour:\011Black
Dimensions:\01160.8mm x 43.3mm
Lens Weight:\011315g

The new redesigned compact Ultron Vintage Line 28mm F2.0 Aspherical VM Type II features improved aspherical optical performance utilising10 lens elements in 7 groups. The new lens is sharper, smaller, lighter and available in three classic lens style.

Type II lenses have a 1970?s Black Paint or Chrome Plating style on an all brass lens barrel with a fast focusing comfortable classic style focusing tab.

The lens accepts the optional aluminium LH-4N and LH-12 lens hoods. Sold separately

The NOKTON 35mm F1.2 Aspherical III VM is an updated lens, featuring improved compactness for enhance useability on rangefinder cameras whilst keeping the established excellent optical performance of the previous model.

By using leading-edge optical glass and a high-performance design method, we have been able to reduce the size of the lens whilst combining both high-level optical performance and a wide aperture.

In comparison with the former model (NOKTON 35mm F1.2 Aspherical II), it is approximately 20% shorter (50.5mm), and it is about 30% lighter (332g). In comparison to other interchangeable lenses for mirrorless camera with the same specifications, it is less than half the length and one third the weight.

When seeking for the ultimate in optical performance, most lenses tend to have many elements which makes them heavy and bulky. The Voigtl?nder VM series provides a rich experience and value by giving the best balance of practical optical performance and useability.

The Voigtlander ULTRON Vintage Line 35mm F2 Aspherical VM II is a compact semi wide-angle lens with a new optical design consisting of 8 elements in 5 groups.

The optional LH-4N & LH-12 lens hoods manufactured from aluminum feature a bayonet mount for quick attachment / removal and crystal paint highly valued for its classical texture.

Main Features

? Classical styling reminiscent of the 1950s
? Element with aspherical surfaces ensures excellent performance from maximum aperture
? Extremely solid and durable all-metal barre

Classic pancake wide-angle lens.

Focal Length: 35 mm
Aperture Ratio: 1:2,5
Minimum Aperture: F 22
Lens Construction: 7 elements in 5 groups
Angle of View: 63?
Aperture Blades: 10
Minimum Focus: 0,7 m
Maximum Diameter: 55 mm
Length: 23 mm
Mount: M-Bajonett (VM)
Weight: 134 g
Filter Size: 39 mm
Color: black
Others: rangefinder can be combined
Optional: Lenshood LH-4N

The Voigtlander 50mm f3.5 APO-LANTHAR Type I is an extremely high performance manual focus standard lens optimized for full frame VM mount cameras. The apochromatic design thoroughly eliminates chromatic aberration on axis and other aberrations, while pursuing ultimate performance in terms of resolution and contrast reproduction. While adopting a maximum aperture of F3.5, the lens is composed of eight elements in six groups, four of which are made of anomalous partial dispersion glass to achieve uncompromising optical performance.

The lens combines ultimate optical performance with easy handling and classic vintage rangefinder lens styling. As a tribute to classic rangefinder lenses that appeared in the mid 20th century, the more expensive vintage style straight slot screw heads were chosen instead of less expensive modern Phillips head.

Equipped with a high precision rangefinder linked mechanism, and the silky feel of the all metal helicoid allowing the photographer to experience the true joy of focusing using a traditional rangefinder. The minimum focusing distance of the Type I is 0.45m. The rangefinder close focus is 0.7m (depending upon camera capability), which is linked to the rangefinder. A mechanism is provided to recognize the junction point of the rangefinder linked range by a clicking sensation during focusing operation.

The filter diameter is a retro inspired φ34mm. Two versions of Type I are available: a two tone black paint and chrome model with a heavy feel using brass materials (body weight: 245g) and a lightweight model with a matte black paint and aluminium construction (body weight: 150g). Each version includes a metal hood and a metal cap with the same finish as the lens body.

The NEW Voigtlander APO-Lanthar 50mm f/2 Aspherical lens for Leica M-Mount cameras is based on the Sony E-Mount version released last year (2020), and has been optimised for full-frame M-mount sensors. Voigtlander only gives the APO-Lanthar title to high-performance products, those with ?outstanding imaging performance?.

Optically the lens is constructed of 10 elements in eight groups, with two abnormally dispersed glass elements and two double-sided aspherical lenses along with a floating mechanism. This produces perfectly circular bokeh wide open and also closed down as far as f/5.6 thanks to its 12-bladed diaphragm. The apochromat design produces the ?ultimate performance? in regards resolution and contrast.

High speed wide lens
M.C. = multi coated

Focal Length: 40 mm
Aperture Ratio: 1:1,4
Minimum Aperture: F 16
Lens Construction: 7 elements in 6 groups
Angle of View: 56?
Aperture Blades: 10
Minimum Focus: 0,7 m
Maximum Diameter: 55 mm
Length: 29,7 mm
Mount: M-Bajonett (VM)
Weight: 175 g
Filter Size: 43 mm
Color: black
Others: rangefinder can be combined
Optional: Lenshood LH-6
